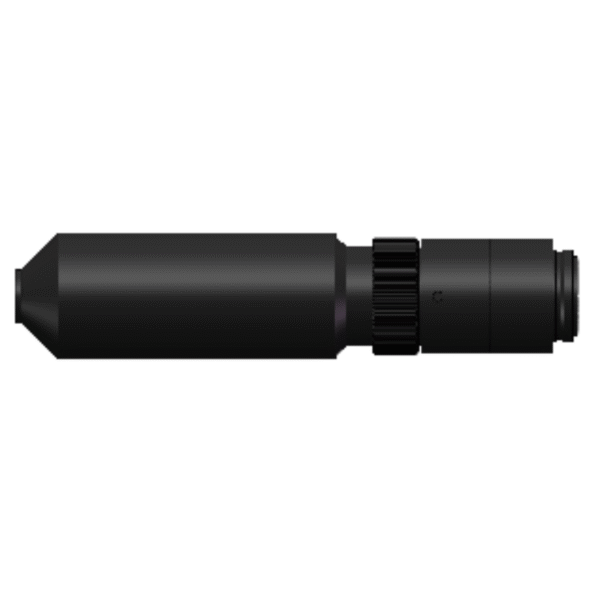

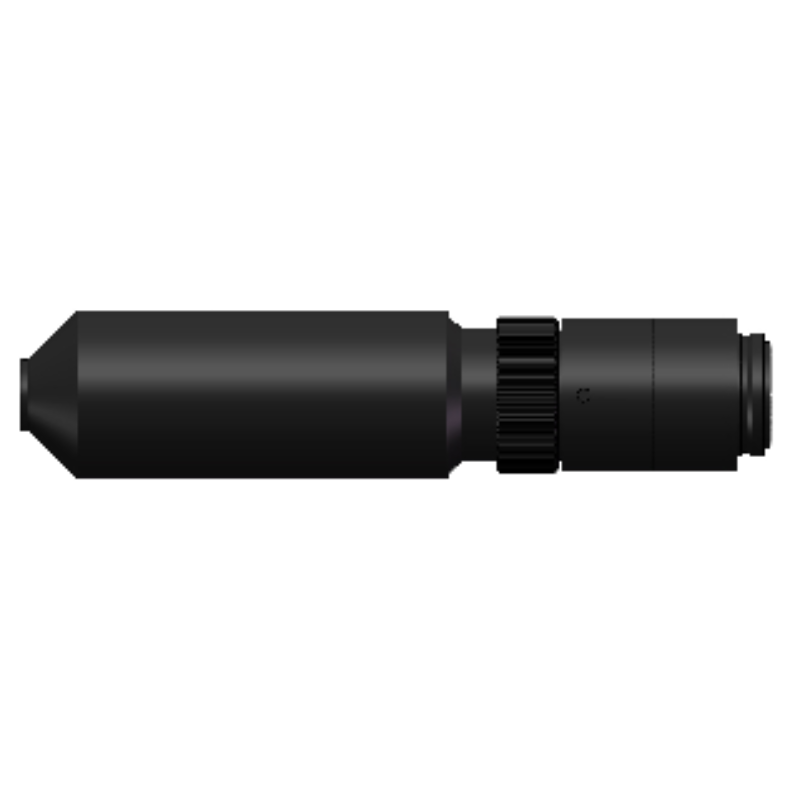

VR Monocular Detection Lens
Precision Optics for AR/VR Sensing and Environmental Detection
Key Features:
✔ Compact & Lightweight Design – Optimized for VR/AR headsets and wearable devices (<15g weight, 20mm diameter)
✔ Wide Field of View (FoV) – 90°+ diagonal FoV for immersive environmental detection
✔ Low Distortion – <1.5% barrel distortion for accurate spatial mapping
✔ High Transmission Coating – Broadband AR coating (400-700nm) with >98% light efficiency
✔ Fast Auto-Focus Support – Compatible with micro-actuators for dynamic focus adjustment
Technical Specifications:
| Parameter | Specification |
|---|---|
| Focal Length | 3.5mm (fixed) / 5mm (adjustable) |
| Aperture | f/2.0 (fixed) |
| Sensor Support | 1/2.5” to 1” CMOS/Global Shutter |
| Resolution | Supports 8K @ 60fps (pixel-matched) |
| Focus Range | 10cm to ∞ (hyperfocal optimization) |
| Operating Temp | -10°C to +50°C |
Applications:
► VR/AR Headset Tracking – Inside-out positional tracking and depth sensing
► Gesture Recognition – High-speed motion capture for interactive systems
► LiDAR-Assisted Navigation – Low-light detection for robotics and drones
► Industrial Metrology – Miniaturized inspection for tight spaces
Customization Options:
-
Filter Integration – IR-cut, polarization, or ND filters
-
Mount Compatibility – M12×0.5 threaded or custom OEM flange
-
Coating Variants – UV-enhanced (300-400nm) or SWIR (900-1700nm) versions
Quality Assurance:
-
Tested for MTF performance, ghosting, and thermal drift
-
IEC 62368-1 safety certified for consumer electronics integration
